Geosythetic Bentonite Clay Liners (GCLs)

FOB Reference Price:Get Latest Price
US $1-3 / Square Meters | 3000 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Jennyever
Model Number:
JGCL
Type:
Other Waterproofing Materials
Supply Ability
Supply Ability:
30000 Square Meter/Square Meters per Year
Packaging & Delivery
Packaging Details
Standard export packing
Port
Qingdao,China
Lead Time :
within 3 weeks after receipt of downpayment

Specifications

Bentonite Geosynthetic clay liners (GCL) consist of bentonite, woven between two geotextile layers. This lining mechanism uses

              GCL rolls

 Composite GCLs HDPE sheets processing                                                             Packed GCLs rolls

       non woven textile side     woven textile side

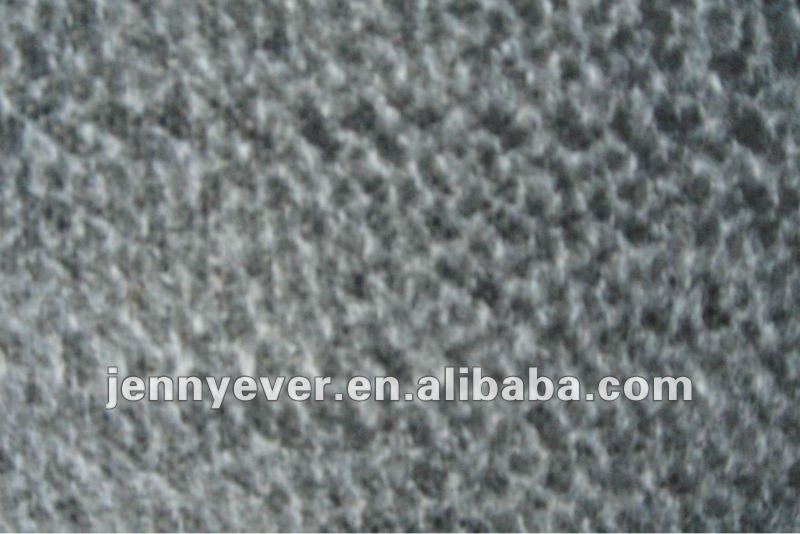

Rolled GCLs side view                                     Nonwoven geotextile side of GCLs        Woven geotextile side of GCLs



Bentonite Geosynthetic clay liners (GCL) consist of bentonite, woven between two geotextile layers. This lining mechanism uses the properties of bentonite and the material to which it is bonded holds the clay in place.

Our GCLs specifications:

Type

GCLs

A reinforced GCL consisting of a layer of natural sodium Bentonite between a woven and a non-woven geotextile which are needlepunched together

Composite GCLs

A reinforced GCL consisting of a layer of natural sodium Bentonite between a woven and a non-woven geotextile which are needlepunched together and laminated to a thin flexible membrane liner.

MODEL

JGCL

JSGCL

JHM-GCL

JHM-SGCL

WIDTH

5.8M

2.9M

5.8M

2.9M

LENGTH PER ROLL

30M

5M

30M

5M

MASS WEIGHT OF BENTONITE

3.6KG/SQM- 4.8KG/SQM

3.6KG/SQM-4.8KG/SQM

3.6KG/SQM-4.8KG/SQM

3.6KG/SQM-4.8KG/SQM

THICKNESS OF HDPE LINER

N/A

N/A

0.1MM-0.3MM

0.1MM-0.3MM

CAPACITY OF 20’CTR

3480SQM-4524SQM

3480SQM-4524SQM

3132SQM-4176SQM\

3132SQM-4176SQM
