ultrasonic welding machine for PE geoweb

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Supply Ability:
50 Set/Sets per Year
Port:
Qingdao,China
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Place of Origin:
China (Mainland)
Brand Name:
NCT
Model Number:
NCT-2000
Voltage:
380V
Current:
35KW
Dimensions:
10.5m (L) x 2.1m ( W) x 1.8m (H)
Weight:
10tons
Usage:
PE geocell production
After-sales Service Provided:
Engineers available to service machinery overseas
welding:
ultrasonic
Packaging & Delivery
Packaging Details
standard export packing
Delivery Time
30-60 days

Specifications

designed specially for PE (polyethylene) Geocell production which can improve the working efficiency

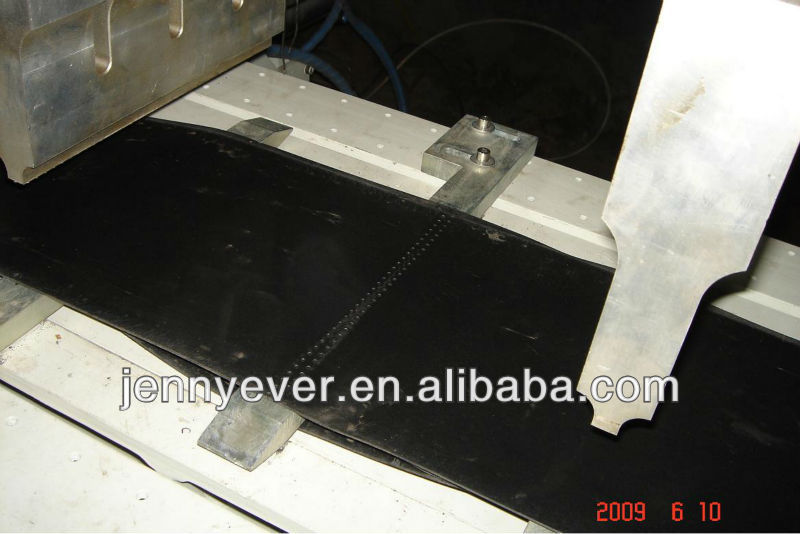

 The NCT series  ULTRASONIC WELDING EQUIPMENT is designed specially for PE (polyethylene) Geocell production which can improve the working efficiency compared with single instrument welding. It is a combination of multiple ultrasonic welding machines by adopting the imported the PLC control system thus realizing the automatic operation by two workers only, easy working and self mal-operation protection and mistake warning functions. Our equipment is with most advance technology and humanized design and superior quality in China., The main characteristics are:

* Touching screen demonstration in main server box

* Touching screen in parameter setting for each welding instrument

Easy working menu

* Convenient altitudinal Adjustable for each welding heads

* Newly designed enlargement electric circuit with stronger power and durable Transducer

* High quality alloy-alluminum welding mouds suitable for 5cm, 10cm,15cm,20cm,25cm and 30cm height geocell available







MODEL NO.

NCT-2000-11

NCT-2000-14

NCT-2000-18

NCT-2000-24

No.of welding moulds

11 units

14 units

18units

24 units

Max. Power

46.2KW

58.8KW

50.4KW

100.8KW

Each Ultrasonic Transducer Power

4200W

Each Ultrasonic Server Power

4200W

Ultrasonic Viberation Frequency

15KHZ

Air compressor power

15Kw/h

Welding distance scope

300mm-1000mm

Geocell strips width

300mm Max. (adjustable according to the size of the welding heads)

Daily output ( reference)

3500sqm

4000sqm

4500sqm

6000sqm

Size of the equipment

10.5m (L) x 2.1m   ( W) x 1.8m (H)

Weightness

7-10tons



Matching PE extrusion machine for producing perforated or non-perforated PE strips are also avaible. For details, please contact us.
